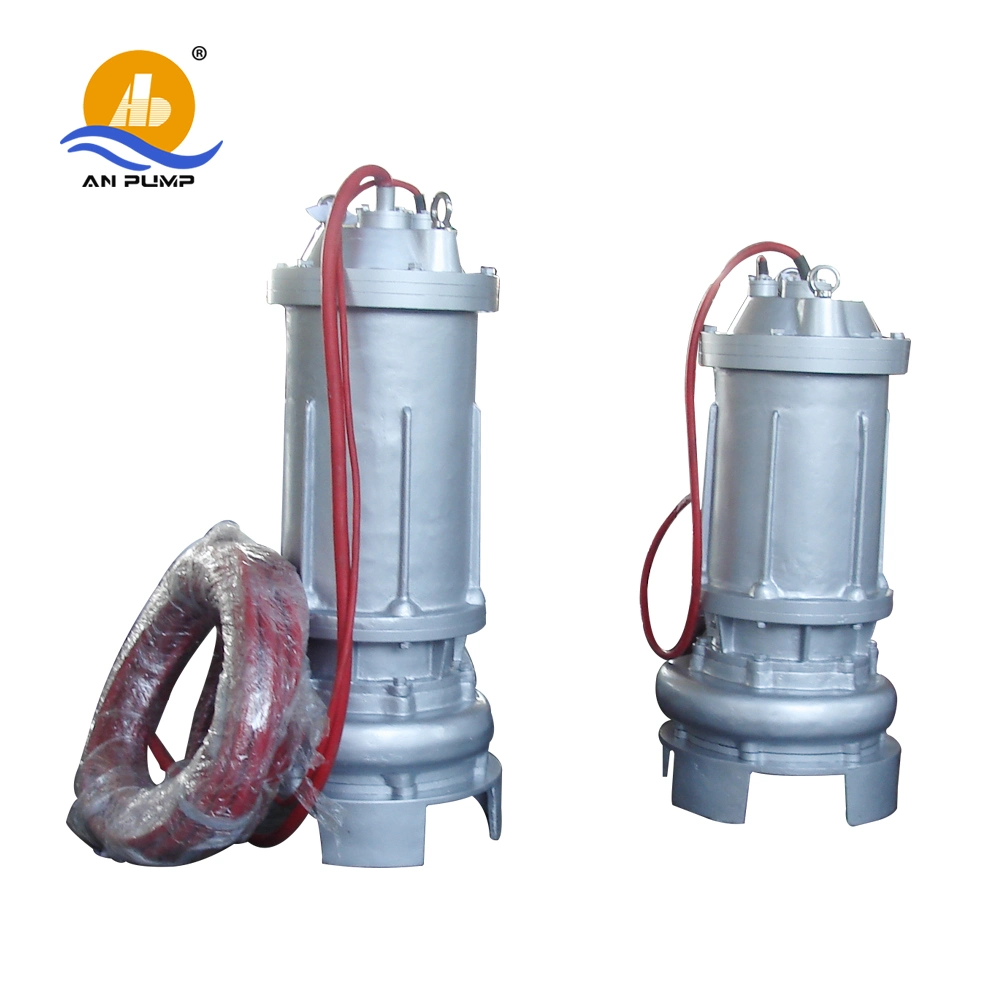

Introduction for QW Series Non Clog Dewatering Submersible Sewage Pump:
WQ series submersible sewage pump using the most excellent hydraulic model, special structures and materials, combined with sewage effluent characteristics and the actual needs of the most developed at home and abroad advanced, most feature-complete "third generation" of new sewage pump, its efficiency and performance are superior to similar products at home and abroad.
AQW series submersible sewage pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defence, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.
Designfor QW Series Non Clog Dewatering Submersible Sewage Pump:
1. Capacity: | 7-2650 m3/h |
2. Head: | 8-35 m |
3. Motor Power: | 0.55-315 kw |
4. Density Range: | 1-1.3kg/dm3 |
5. Material: | Cast Iron / Stainless Steel/ Bronze |
6. Power Type: | Electric Motor |
7. Usage: | For pumping sewage |
8. Certificates: | ISO9001;CE |
Performance Parameter for QW Series Non Clog Dewatering Submersible Sewage Pump
Type | Flow(m3/h) | Head(m) | Power(KW) | Speed(r/min) | Efficiency(%) |
40WQ | 8.4--14.4 | 14--16 | 1.5 | 2900 | 41--47 |
50WQ | 7--50.4 | 8--36 | 0.75--7.5 | 1450--2900 | 42--70 |
65WQ | 17.5--44.4 | 11--30.2 | 2.2--4 | 2900 | 46--62 |
80WQ | 20.3--72 | 5.7--27.5 | 2.2-7.5 | 2900 | 39--72 |
100WQ | 35--120 | 5.6--38.5 | 4--15 | 1450 | 51--75 |
150WQ | 49--300 | 5.5--44.5 | 5.5--37 | 1450 | 46--80 |
200WQ | 110--480 | 5.7--44.5 | 11--75 | 1450 | 58--82 |
250WQ | 420--840 | 7--35 | 30--90 | 980--1450 | 63--83 |
300WQ | 280--1140 | 6.7--27 | 45--110 | 980--1450 | 63--84.5 |
350WQ | 700--1800 | 8--40 | 45--160 | 980 | 68--85 |
400WQ | 1050--2640 | 12--33 | 132--160 | 980 | 71--85 |
500AQW | 1400--3000 | 9--22.5 | 110--200 | 980 | 72--85 |
