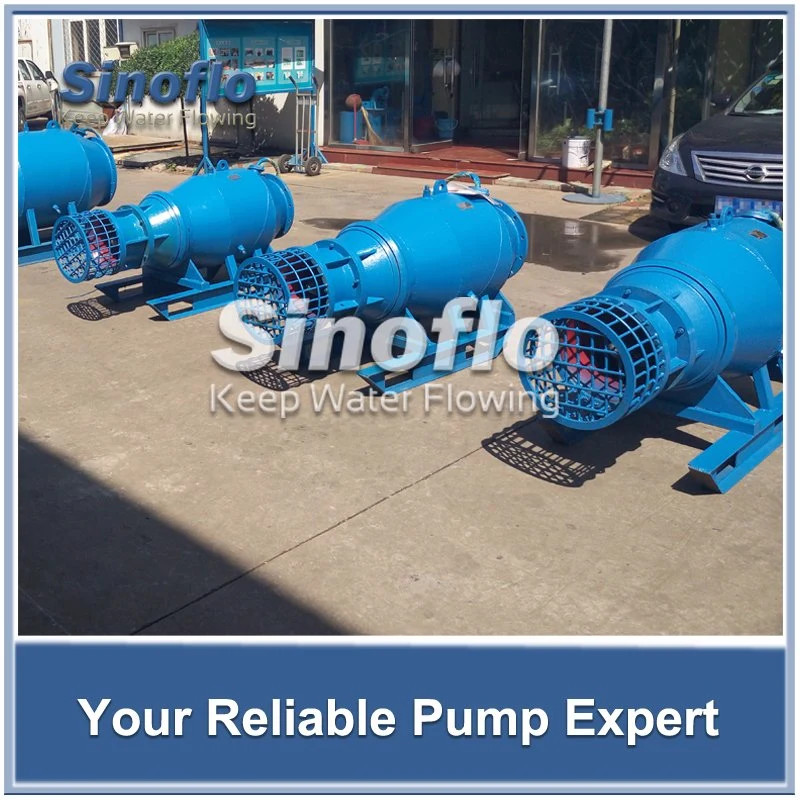

Axial flow submersible propeller floating pump

Summarize of Low Flow Submerged Sump Dewatering Pump Stainless Steel ImpellerInstallation of water flow Channel: in terms of recommended sample installation diagramThe form of water exit: flap valve or other waysInstallation ways: Floor fixed type, suspended type, floated type and diagnal installed type;Max. Capacity: 90000m3/hM

Featured Products

Summarize of Low Flow Submerged Sump Dewatering Pump Stainless Steel Impeller
Installation of water flow Channel: in terms of recommended sample installation diagram
The form of water exit: flap valve or other ways
Installation ways: Floor fixed type, suspended type, floated type and diagnal installed type;
Max. Capacity: 90000m3/h
Max. Head: 20m

Axial Flow Submersible Water Propeller Floating Irrigation Pump

Motor of Low Flow Submerged Sump Dewatering Pump Stainless Steel Impeller
  1. Submersible motor
  2. Power Level: electrical performance conforms to GB756
  3. Protection level: IP68
  4. Voltage grade: ≤1300kw, voltage, 380v, 660v, 6000v, 10000V
  5. Insulation level: F
  6. Rated frequency: 50Hz/60Hz

Axial Flow Submersible Water Propeller Floating Irrigation Pump



Shaft seal of Low Flow Submerged Sump Dewatering Pump Stainless Steel Impeller
There are two or three stages of mechanical seal. The first stage called carborundum (directly contact with water). The second and third stage called graphite and carborundum.
Leak proof Equipment of Low Flow Submerged Sump Dewatering Pump Stainless Steel Impeller
Sinoflo Axial/Mixed Flow Pump have been equipped with leak proof sensors. When the oil tank, the inner part of motor or the junction box has been leaked by water, the sensor will signal or made the motor shut down, and retain the malfunction signal.
Over heating protection system of Low Flow Submerged Sump Dewatering Pump Stainless Steel Impeller
A overheating protection device is fastened on the motor winding. When the temperature exceeds the stated value, the device will signal or made the motor shut down.
Rotation direction:
Seen from the top of the motor, the impeller is rotating clock wisely.

Axial Flow Submersible Water Propeller Floating Irrigation Pump




Application of Low Flow Submerged Sump Dewatering Pump Stainless Steel Impeller
Sinoflo axial/mixed flow pump is widely used in industry and agriculture water lifting, urban water supply, light polluted water discharge and other water transfer project.
Working condition of Low Flow Submerged Sump Dewatering Pump Stainless Steel Impeller
Clean water with the temperature no more than 50 or some liquids that are similar to water.
Axial Flow Submersible Water Propeller Floating Irrigation Pump
Axial Flow Submersible Water Propeller Floating Irrigation Pump

Axial Flow Submersible Water Propeller Floating Irrigation Pump
