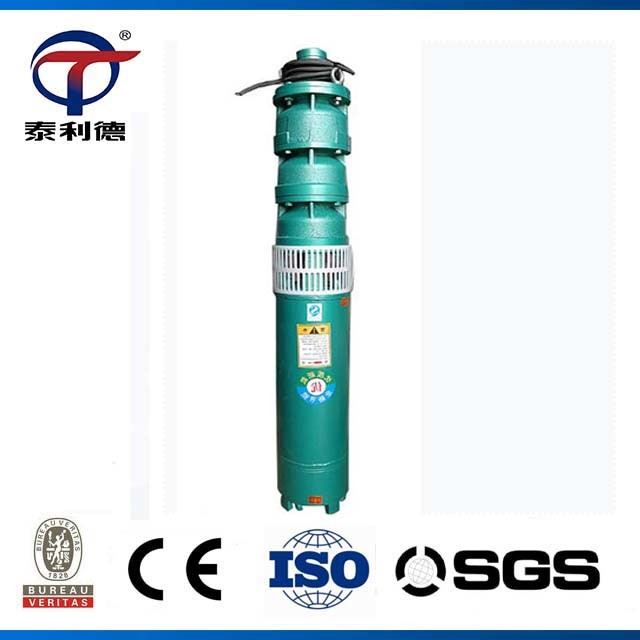

Pump Name:Deep Well Submersible Pump

4


Product introduction:

1. QJ submersible pump is simple structure,easy installation, convenient operation and maintenance.
2. Pump is equipped with inner motor, and special designed for whole submerge work. (Electrical machine and pump wok as a
    whole, it's safe very much.)
3. It is suitable to transport water for extraction of deep groundwater, can also be used in deep well, rivers,  reservoirs
    and ditch water projects.
4. The centrifugal submersible pump is mainly used for irrigation and livestock water system, also for city, factory,railways,
    mining, water supply and drainage construction site.
5. Stainless steel submersible pump for models less than DN100mm(4inch) and cast iron pumps for models with larger diameter.


Applications:
1. Water supply and irrigation system
2. Lowering underground water
3. Booster
4. Various industrial applications

4
Features:

1. The motor and the pump united as one, working under water, more reliable.
2. No special requirements for the well casing and lifting pipe. (QJ deep well submersible pump can work in Steel tubular well, lime
well, earth well etc. Within the reasonable pressure range, steel tube, rubber tube and plastic hose can be used as lifting pipe.)
3. Easy to install, operate and maintain, less space demand, no pump house needed.
4. Simple structure, less cost, Submersible.


Parameter:

NO.ModelWell Dia.(mm)Flow (m3/h)StageHead(m)Power(kw)Outlet dia.(mm)
1200QJ40-20/120040120465
2200QJ40-26/2200402265.565
3200QJ40-30/2200402305.565
4200QJ40-39/3200403397.565
5200QJ40-52/4200404529.265
6200QJ40-60/5200405601165
7200QJ40-65/5200405651365
8200QJ40-78/6200406781565
9200QJ40-91/72004079118.565
10200QJ40-104/820040810418.565
11200QJ40-117/92004091172265
12200QJ40-143/1120040111432565
13200QJ40-156/1220040121563065
14200QJ40-169/1320040131693065
15200QJ40-180/1320040131803465
16200QJ40-208/1620040162083765
17200QJ40-220/1720040172204065
18200QJ40-247/1920040192474565
19200QJ40-299/2320040232995565


Operation conditions:

1.Power source: three phase AC, 380V/460V,50HZ/60HZ;
2.Water source
3.Water temperature: QJ type≤30ºC, QJR type ≤90ºC;
4.Sand content (weight ratio) in water should not exceed 0.01%;
5.Chlorine ion not exceed 400mg/l;
6.PH=6.5-8.5;


Structure


4

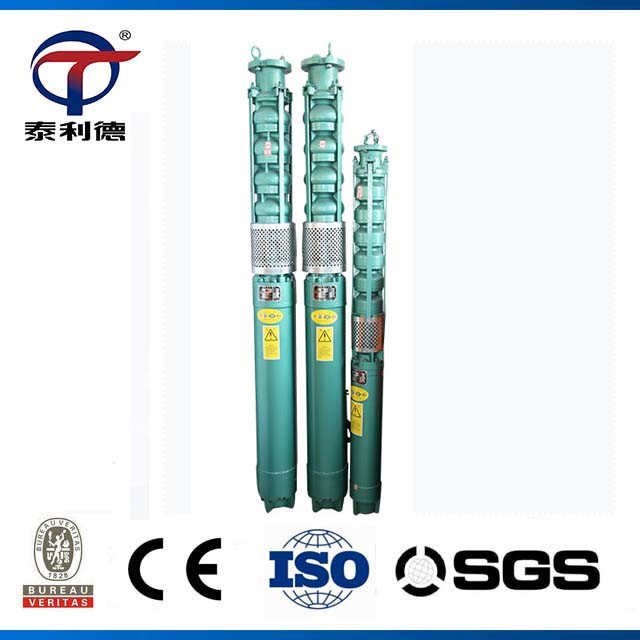

More Real Picture
4
