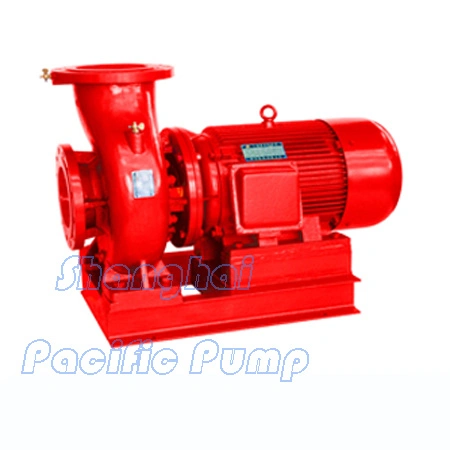

In-line fire pump (XBD-TPW), horizontal in-line fire pump, pipeline pressure pump, centrifugal pump, circulating water pump, Isw pipeline centrifugal pump

Technical Parameter:Capacity: 5-100 L/S;Pressure: 0.10-1.25 Mpa;Power: 1.1-250 KW;Speed: 980-3600 r/min;Calibre: 50-300 mm;Temperture range: ≤ 80º CProduct Introduction:The XBD-W horizontal type single stage single suction fire extinguishing pump group, not is similar for the transportation including solid particle\'s cl

Featured Products

Technical Parameter:

Capacity: 5-100 L/S;
Pressure: 0.10-1.25 Mpa;
Power: 1.1-250 KW;
Speed: 980-3600 r/min;
Calibre: 50-300 mm;
Temperture range: ≤ 80º C

Product Introduction:

The XBD-W horizontal type single stage single suction fire extinguishing pump group, not is similar for the transportation including solid particle's clear water and the physico-chemical properties to water liquid, mainly uses in the fire prevention system pipeline turbo-charged supplying water, also suitably gives draining water in the industry and the city, the high-rise construction turbo-charged supplies water, the long-distance range to supply water, the heating, the bathroom, the boiler changes in temperature water cycle, the turbo-charged air conditioning refrigeration system to supply water and the equipment necessary and so on situations. This department produces XBD-W fire extinguishing pump group its performance, the engineering factor conform to national new promulgation GB6245-1998 "Fire extinguishing pump Performance requirement And Testing method" the standard request, the product examine the central test after the national fire prevention equipment quality surveillance to be qualified, obtain the Shanghai fire prevention product approval certificate.

Range of Application:

Water supply for hydrants and sprinkling, pressure stabilization of fire fighting system, and other locations to handle clean liquids.

Type Designation:

XBD 3.2/5-65W-160A
XBD - Fire Pump code
3.2 -Designed pressure (1/10MPa)
5 - Designed flow (L/S)
65 - Diameter of the pump outlet and inlet (mm)
W - Horizontal structure
160 - Nominal diameter of impeller (mm)
A -Primary cutting of the impeller
