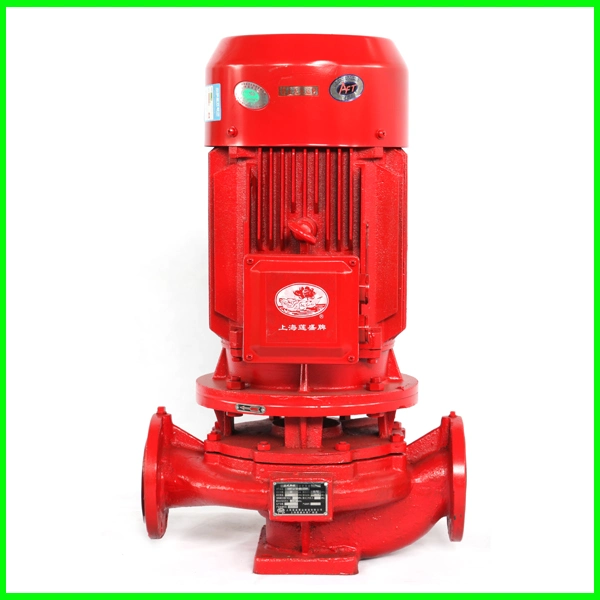

Products Name: XBD-ISG Series Single-stage Vertical Pipeline Fire Pump Booster Pump
Conditions of use: Suitable for conveying the temperature under 60 celsius water and similar to that of liquid water, pump system working pressure of up to 13 bar.
The scope of performance parameter: This series a total of 4 species, 20kinds of specifications and its
performance parameters range:
1 flow Q= 5~80 L/S
2. Lift H= 40 ~ 130 m
3. Speed n=1450/2900 r/min
4. Power P=5.5~ 132kW
5. Inlet Dna=65~200 mm
6. Outlet Dna=65~200mm
| fault phenomenon | failure cause | elimination methods |
| The manual is normal Automatic transmission failure | 1.No power supply or one or two phase power supply is needed | Check all phases of power supply and restore power supply |
| Water level is too low | Put water in the sink | |
| The motor burned | Repair or replace the motor | |
| 1.Line is loose | Check wiring and tighten connectors | |
| 2.Frequency converter malfunction | Check the fault content, check the cause according to the frequency converter manual, and restart after reset.Or disconnect the inverter power supply for a few seconds, the inverter fault reset before starting. | |
| 3The frequency converter is damaged | Repair or replace | |
| 4.Pressure switch damage | Repair or replace | |
| 5The pressure transmitter is damaged | Repair or replace | |
| 6.Switch failure | Repair or replace | |
| Pump non - suction pressure gauge pointer to beat violently | Insufficient water supply for perfusion, air leakage at the connection between pipeline and instrument | Check pipeline and bottom valve, refill water diversion. Tighten air leakage |
The pump consumes too much power | Too much flow, impeller wear | Check whether the pump shaft is bent, replace the impeller, close the outlet valve to reduce the flow |
