IS High efficiency No leakage Split-case end suction centrifugal pump
>>> Product Overview
IS High efficiency No leakage Split-case end suction centrifugal pump is high-effective energy-saving products, split-case end suction centrifugal pumps are successfully designed by ways of adopting the property data of worldwide centrifugal pumps and the unique advantages of vertical pumps, it is strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93. This Hydraulic pump develops into hot water pump (KYWR/KYLR), chemical engineering pump (KYHL) and oil pump (YG) according to different medium.
>>> Features
The impeller is fixed up directly on the lengthening shaft, which results in short axial length. The centrifugal pump and motor coincide perfectly, which effectively reduces the axial and radial force.
Stable running, low noise, high concentricity of components. The impeller has the advantage of best dynamic and static balance, so no vibration at running.
Easy to maintain Split-case End Suction Centrifugal Pump. It is no need to remove the pipeline for check-out and maintenance.
According to the installation condition of the worksite, IS high efficiency no leakage End Suction Centrifugal Pump could be mounted vertically or horizontally etc.
According to the requirements of the flow and head, the end suction centrifugal pumps can be mounted in parallel or in series.
Materials of KYHL, KYHW chemical engineering pump: zg0q r1 8nil 2mo2ti (AISI 306), zg1qr18nil2mo2ti (AISI 307), zg1qr18ni9 (AISI 303), zg1q r18ni9ti (AISI 305).
>>> Working Conditions
Maximum working pressure is less than 1.6MPa, which refers to the inlet pressure and the outlet pressure all together is less than 1.6MPa. The testing pressure is 2.5MPa. Cast steel will be used for the flow passage components and joint parts when the working pressure is larger than 1.6MPa.
Proper medium: clear water without solid particles or the solid particle content is no more than 0.1%of the water and diameter is less than 0.2mm.
The environment temperature should not be higher than 120ºC. The relative humidity should not be more than 95%.
>>> Applications
KYL (KYW) series end suction horizontal centrifugal pump is used to deliver clear water and other liquids similar to water in physical properties for industrial and cities water supply and drainage, high buildings booster water supply, garden irrigation, fire-fighting booster, remote water supply, warming systems, cycle booster of cold and hot water in bath rooms as well as for industrial equipments. The medium temperature should be lower than 80ºC.
KYLR (KYWR) series vertical hot water pump is used for the hot water booster cycle systems and the heat transport systems in heat-stations, residual heat utilization, metallurgy, chemistry, tactile, wood-processing, paper-making, industrial boilers. The medium temperature is lower than 120ºC.
KYHL (KYHW) series vertical chemical pump is used to transport the corrosive liquids containing no solid particle. The viscosity of liquid is similar to water. It can be used in light and textile industries, petroleum, chemical industries, metallurgy, electricity, paper-making, food, medicine and synthetic fiber industries etc. The working temperature is from 20ºC to120ºC.
YG series vertical non explosive oil pump is used to transport non-corrosive, inflammable, non explosive liquids for light, textile and mechanical industries etc. The medium temperature is from 20ºC to 120ºC and the density should be less than 1000kg/m3.
>>> Model Meaning
KYL(KYW)65-160(I)(A/B)
KYL: Single Stage, Single and end Suction, Vertical Inline Pump, centrifugal pump
KYW: Single Stage, end Suction, Horizontal Pump, centrifugal pum[
KYLR: Single Stage, Single Suction, Vertical Hot Water Pump,
KYHL: Single Stage, Single Suction, Vertical Chemical Pump
KYHW: Single Stage, Single Suction, Horizontal Chemical Pump
YG: Single Stage, Single Suction, Oil Pump, end suction centrifugal pump
65: Inlet & Outlet Diameter (mm)
160: Outer Diameter Of Impeller
(I): Flow Classification
A: First Impeller Cut
B: Second Impeller Cut

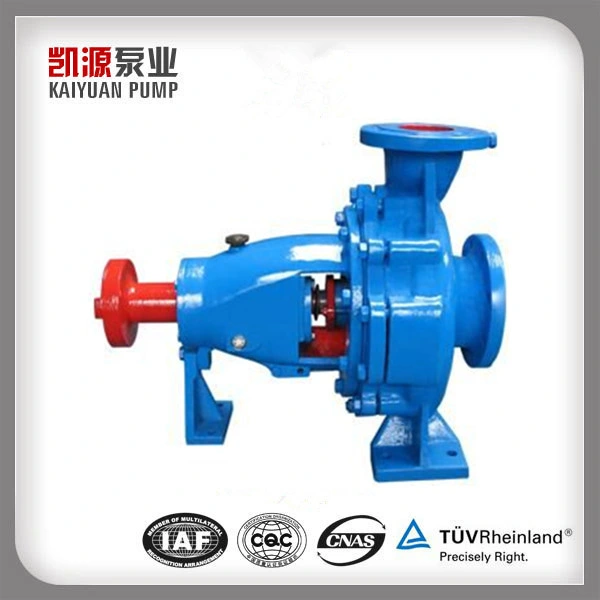

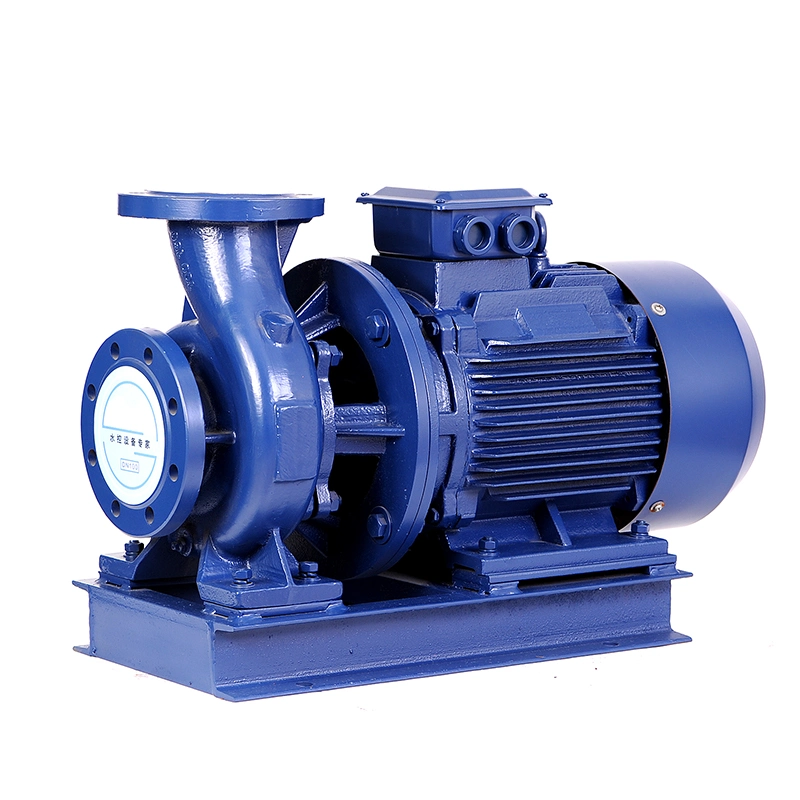

>>> Photo of IS centrifugal pump
>>> Part Of Model Parameters
IS High efficiency No leakage Split-case end suction centrifugal pump
≡≡ Other Pumps You May Be Interested In
1) IS High efficiency No leakage Split-case end suction centrifugal pump
2) XBD end suction horizontal fire-fighting centrifugal pump
3) QW non clogging submersible sewage pump
4) QDL/QDLF light weight multistage pump
5) TSWA horizontal multistage centrifugal pump
6) KYSB split-case single-stage double suction centrifugal pump
Company Information
≡≡ About Kaiyuan Pump
Shanghai Kaiyuan provides submersible water pump, sewage pump, fire-fighting water pump, multi-stage vertical (horizontal) water pump, diesel engine water pump, water supply equipment and other pumps. Here we have modern production base of 20000 square meters, and 1500 square meters of office, professional R&D institution and technology team, which makes us a world-class company. Here all Kaiyuan machines are designed, produced, assembled and tested according to the ISO9001:2008.
>>> Product Overview
IS High efficiency No leakage Split-case end suction centrifugal pump is high-effective energy-saving products, split-case end suction centrifugal pumps are successfully designed by ways of adopting the property data of worldwide centrifugal pumps and the unique advantages of vertical pumps, it is strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93. This Hydraulic pump develops into hot water pump (KYWR/KYLR), chemical engineering pump (KYHL) and oil pump (YG) according to different medium.
>>> Features
The impeller is fixed up directly on the lengthening shaft, which results in short axial length. The centrifugal pump and motor coincide perfectly, which effectively reduces the axial and radial force.
Stable running, low noise, high concentricity of components. The impeller has the advantage of best dynamic and static balance, so no vibration at running.
Easy to maintain Split-case End Suction Centrifugal Pump. It is no need to remove the pipeline for check-out and maintenance.
According to the installation condition of the worksite, IS high efficiency no leakage End Suction Centrifugal Pump could be mounted vertically or horizontally etc.
According to the requirements of the flow and head, the end suction centrifugal pumps can be mounted in parallel or in series.
Materials of KYHL, KYHW chemical engineering pump: zg0q r1 8nil 2mo2ti (AISI 306), zg1qr18nil2mo2ti (AISI 307), zg1qr18ni9 (AISI 303), zg1q r18ni9ti (AISI 305).
>>> Working Conditions
Maximum working pressure is less than 1.6MPa, which refers to the inlet pressure and the outlet pressure all together is less than 1.6MPa. The testing pressure is 2.5MPa. Cast steel will be used for the flow passage components and joint parts when the working pressure is larger than 1.6MPa.
Proper medium: clear water without solid particles or the solid particle content is no more than 0.1%of the water and diameter is less than 0.2mm.
The environment temperature should not be higher than 120ºC. The relative humidity should not be more than 95%.
>>> Applications
KYL (KYW) series end suction horizontal centrifugal pump is used to deliver clear water and other liquids similar to water in physical properties for industrial and cities water supply and drainage, high buildings booster water supply, garden irrigation, fire-fighting booster, remote water supply, warming systems, cycle booster of cold and hot water in bath rooms as well as for industrial equipments. The medium temperature should be lower than 80ºC.
KYLR (KYWR) series vertical hot water pump is used for the hot water booster cycle systems and the heat transport systems in heat-stations, residual heat utilization, metallurgy, chemistry, tactile, wood-processing, paper-making, industrial boilers. The medium temperature is lower than 120ºC.
KYHL (KYHW) series vertical chemical pump is used to transport the corrosive liquids containing no solid particle. The viscosity of liquid is similar to water. It can be used in light and textile industries, petroleum, chemical industries, metallurgy, electricity, paper-making, food, medicine and synthetic fiber industries etc. The working temperature is from 20ºC to120ºC.
YG series vertical non explosive oil pump is used to transport non-corrosive, inflammable, non explosive liquids for light, textile and mechanical industries etc. The medium temperature is from 20ºC to 120ºC and the density should be less than 1000kg/m3.
>>> Model Meaning
KYL(KYW)65-160(I)(A/B)
KYL: Single Stage, Single and end Suction, Vertical Inline Pump, centrifugal pump
KYW: Single Stage, end Suction, Horizontal Pump, centrifugal pum[
KYLR: Single Stage, Single Suction, Vertical Hot Water Pump,
KYHL: Single Stage, Single Suction, Vertical Chemical Pump
KYHW: Single Stage, Single Suction, Horizontal Chemical Pump
YG: Single Stage, Single Suction, Oil Pump, end suction centrifugal pump
65: Inlet & Outlet Diameter (mm)
160: Outer Diameter Of Impeller
(I): Flow Classification
A: First Impeller Cut
B: Second Impeller Cut
>>> Photo of IS centrifugal pump
>>> Part Of Model Parameters
| Item | Model | Capacity Q | Head (m) | Eff. (%) | Speed (r/min) | P0wer (kW) | NPSH (m) | |
| m3/h | L/s | |||||||
| 001 | 15-80 | 1.1 1.5 2.0 | 0.30 0.42 0.55 | 8.5 8 7 | 26 34 34 | 2800 | 0.18 | 2.5 |
| 002 | 20-110 | 1.8 2.5 3.3 | 0.5 0.69 0.91 | 16 15 13.5 | 19 34 35 | 2800 | 0.37 | 2.5 |
| 003 | 20-160 | 1.8 2.5 3.3 | 0.5 0.69 0.91 | 33 32 30 | 19 25 23 | 2800 | 1.5 | 2.5 |
| 004 | 25-110 | 2.8 4 5.2 | 0.78 1.11 1.44 | 16 15 13.5 | 34 42 41 | 2900 | 0.75 | 2.5 |
| 005 | 25-125 | 2.8 4 5.2 | 0.78 1.11 1.44 | 20 20 18 | 28 36 35 | 2900 | 0.75 | 2.5 |
| 006 | 25-125A | 2.5 3.5 4.5 | 0.69 0.97 0.25 | 17 16 17 | 35 | 2900 | 0.75 | 2.5 |
| 007 | 25-160 | 2.8 4 5.2 | 0.78 1.11 1.44 | 33 32 30 | 24 32 33 | 2900 | 1.5 | 2.5 |
| 008 | 25-160A | 2.5 3.5 4.5 | 0.69 0.69 1.25 | 29 28 26 | 31 | 2900 | 1.1 | 2.5 |
| 009 | 32-125 | 4.5 5 6.5 | 1.25 1.39 1.80 | 20.5 20 18 | 29 38 38 | 2900 | 0.75 | 2.5 |
| 010 | 32-125A | 3.3 4.5 5.7 | 0.92 1.25 1.58 | 17 16 14 | 37 | 2900 | 0.75 | 2.5 |
| ??? | ??? | ??? | ??? | ??? | ??? | ??? | ??? | ??? |
| 246 | 300-480 | 540 720 900 | 150 200 250 | 31 28 24 | 77 81 74 | 980 | 75 | 5 |
| 247 | 300-480A | 450 600 720 | 125 166 200 | 27 24 20 | 75 81 77 | 980 | 55 | 5 |
| 248 | 300-480B | 400 540 650 | 111 150 180 | 24 21 17 | 77 81 77 | 980 | 45 | 5 |
| 249 | 350-315 | 1000 1150 1300 | 277 319 361 | 34 32 26 | 74 78 77 | 1450 | 160 | 4 |
| 250 | 350-315A | 950 1120 1220 | 263 311 338 | 30 28 23 | 70 74 72 | 1450 | 132 | 4 |
| 251 | 350-315B | 900 1040 1180 | 230 288 327 | 26 24 19 | 77 81 74 | 1450 | 110 | 4 |
| 252 | 350-400 | 620 800 950 | 172 222 263 | 53 50 45 | 74 78 77 | 1450 | 160 | 4 |
| 253 | 350-400A | 600 750 850 | 166 208 236 | 46 44 39 | 70 74 72 | 1450 | 132 | 4 |
| 254 | 350-400B | 560 700 820 | 155 194 227 | 40 38 33 | 77 81 74 | 1450 | 110 | 4 |
| 255 | 350-400C | 530 650 710 | 147 180 197 | 34 32 28 | 77 81 74 | 1450 | 90 | 4 |
