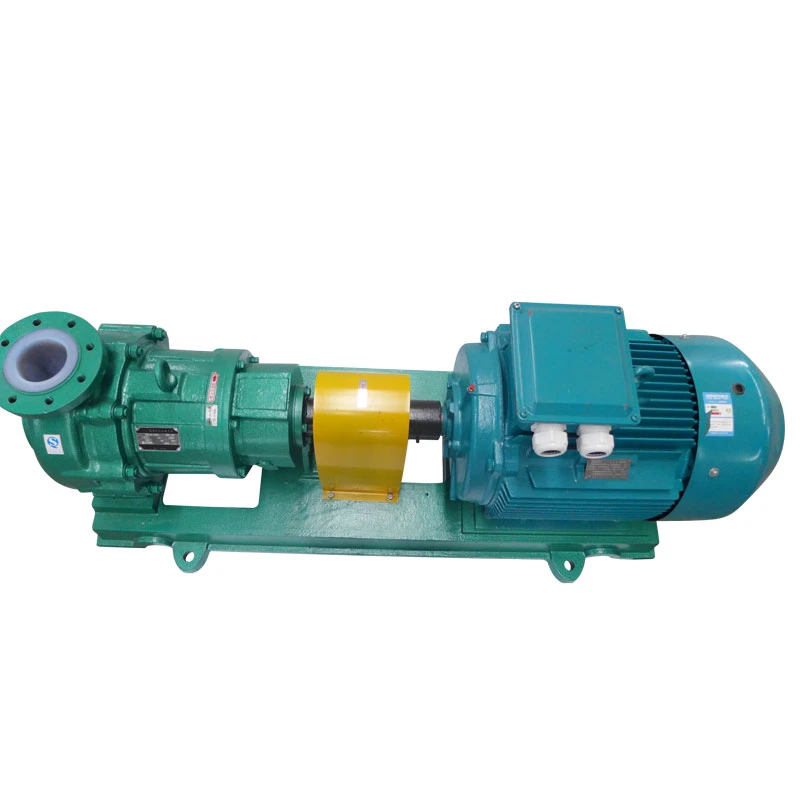

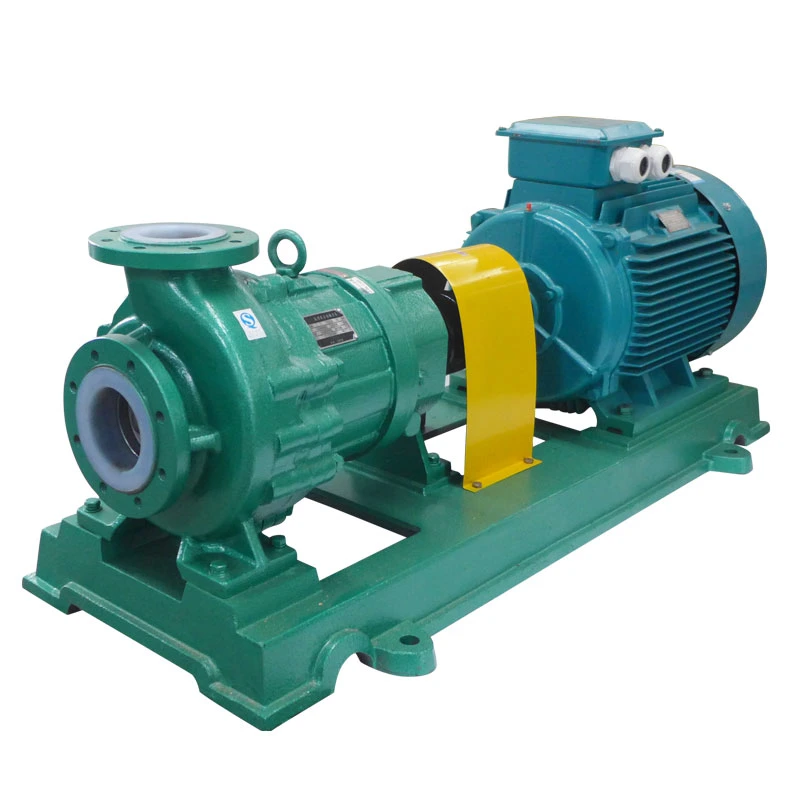

| Product Name | Fluoroplastic lined magnetic drive pump |
| Material | PTFE/FEP/PVDF/PP lining |
| Standard | ISO9001, ASME, ANSI |
| Flow rate | 7-120m3/hr |
| Head | 22-50m |
| Voltage | 220V/380V/415V/460V or as customer required |
| Design pressure | 1.6MPa |
| Warranty | 1 year |
| Pump Liquid | Acids , Alkalis , Waste water, Strong oxidant, Organic solvents, Corrosive slurries, solvents, Hydrocarbons and other strong corrosive medium, Ammonia water ion film caustic soda etc |
| Applilcation | Petrochemical industry, acid or base making, non-ferrous metal metallurgy,acid-cleaning technique in car-manufacturing, rare earth separation,pesticides,dyes, medichines, papermaking, galvanization and radio industry etc. |
Design feature
*Leak-proof design
No shaft seal. Utilize magnetic coupling indirect driving, which free you from leak problem and will not contaminate the site.
Because the pump's liquid carrying part is made of fluoroplastic alloy, it can be continually carry acid, base, or strong oxidizer at
any concentration without any damage.
*Operating principe
In the driving device the initiative magnet junction box is directly installed onto the motor shaft. The pump chamber is totally sealed,
and is propelled to rotate by the magnetic impeller on the magnetic coupling indirect driving pump shaft, its structure tight,safe and energy-saving.
*Strong and sturdy pump housing
Though the liquid-touching part is made of fluoroplastics, the pump enclosure is made of metal, so the pump can sustain the pipe's weight and mechanical shock.
If you have any others pump type, please free contact us
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:SUNPACE has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
