Split type fire pump/ Split type fire pump/ Diesel engine fire pump/ Electric fire pump 5000gpm@12bar

COS series Horizontal Split Case Fire Pumps are engineered for reliable operation upon demand. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability. Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenan

Featured Products

COS series Horizontal Split Case Fire Pumps are engineered for reliable operation upon demand. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability. Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenance.

Features

1. All fire pumps and accessories are engineered to meet all applicable code, including UL448/FM1311, NFPA20.

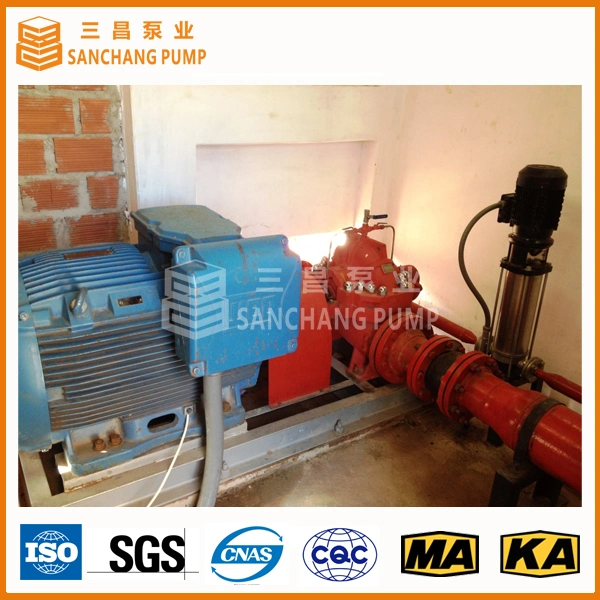

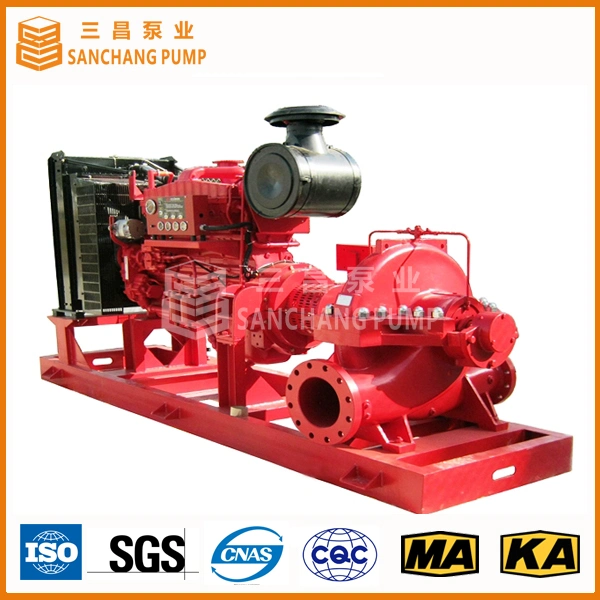

2. Whether your fire pump application requires an electric motor or a diesel engine, vertical or horizontal orientation, these industry-approved pumps can be configured to meet your specific needs.

3. These pumps are designed to operate with pressures from 5 Bar to 20 bar, even in excess of 22 bar and flows from 500 gpm to 5000 gpm.

Parameters

Flow: 500 - 5,000 gpm
Head: 5-22 bar
Outlet Dia.: 80-300mm
Working Pressure: ≤ 3.5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0ºC-60ºC

Materials of Construction

Split Case Fire Pump / Split Casing Fire Pump / Diesel Engine Fire Pump/ Electric Fire Pump 5000gpm@12bar


No.Parts NameStandard Material Optional Material
1Sealing Pipe PartsS.S304
2Pump CasingDuctile Iron QT500
3Coupling CoverSteel Q235
4Wearing RingS.S420(2Cr13)S.S304
5Protecting CoverSteel Q235
6ShaftAlloy Steel 40Cr
7Bearing Resist SleeveS.S304
8Coupling DeviceCast Iron HT250
9Bearing PartsNSK or Equivalent
10Bearing HousingCast Iron HT250
11Shaft SleeveS.S304
12ImpellerS.S420(2Cr13)S.S304
13Gland Packing SealsPTFE
14Pump BodyDuctile Iron QT500

Split Case Fire Pump / Split Casing Fire Pump / Diesel Engine Fire Pump/ Electric Fire Pump 5000gpm@12bar

Split Case Fire Pump / Split Casing Fire Pump / Diesel Engine Fire Pump/ Electric Fire Pump 5000gpm@12bar
Split Case Fire Pump / Split Casing Fire Pump / Diesel Engine Fire Pump/ Electric Fire Pump 5000gpm@12bar
