CQ type Stainless Steel Magnetic Pump, Magnet Pump, Seal Less Pump, No Leakage Pump, Magnetic Driven Pump, Chemical Pump, IWAKI Pump, Anti-corrosion Pump
Overview
In petroleum, chemical, pharmaceutical, and many other fields, require no leakage of the transmission medium in process, urgently need the ideal pump type. Our CQ series magnetic pump successfully solved the current domestic magnetic pump impeller isolation cover, impeller that easily damaged technical problem, make its function more perfect.
Product Features

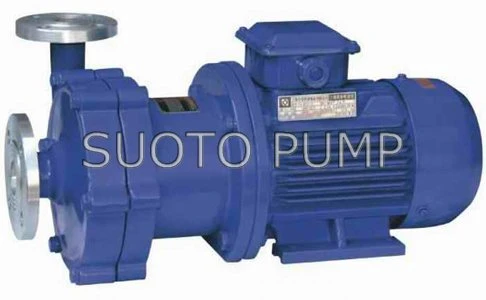

CQ stainless steel magnetic pump is a new type of pump that use magnetic couplings working principle to transmit non-contact torque. The motor drives outside rotor, through magnetic, drives inside rotor, while the rotor is connected with the impeller, thus achieved non-contact to rotate impeller purposes. Since liquids was closed in the stationary isolation chamber, magnetic pump is a fully enclosed, leak-off pump type, so as to completely eliminate the mechanical seal type centrifugal pump inevitably drop, leak problems.
Application
Pump flow components adopt stainless steel (304, 316L) materal, it is widely used in petroleum, chemical, pharmaceutical, electroplating, environmental protection, water treatment, national defense, and other departments to transport inflammable, explosive, toxic and precious liquids, is the best choice for non-leakage, no pollution working environment.
Overview
In petroleum, chemical, pharmaceutical, and many other fields, require no leakage of the transmission medium in process, urgently need the ideal pump type. Our CQ series magnetic pump successfully solved the current domestic magnetic pump impeller isolation cover, impeller that easily damaged technical problem, make its function more perfect.
Product Features
CQ stainless steel magnetic pump is a new type of pump that use magnetic couplings working principle to transmit non-contact torque. The motor drives outside rotor, through magnetic, drives inside rotor, while the rotor is connected with the impeller, thus achieved non-contact to rotate impeller purposes. Since liquids was closed in the stationary isolation chamber, magnetic pump is a fully enclosed, leak-off pump type, so as to completely eliminate the mechanical seal type centrifugal pump inevitably drop, leak problems.
Application
Pump flow components adopt stainless steel (304, 316L) materal, it is widely used in petroleum, chemical, pharmaceutical, electroplating, environmental protection, water treatment, national defense, and other departments to transport inflammable, explosive, toxic and precious liquids, is the best choice for non-leakage, no pollution working environment.
| Model | Dia. (mm) | Capacity | Head | Power | Speed | |
| Suc. | Dis. | (m3/h) | (m) | (KW) | (r/min) | |
| 16CQ-8 | 16 | 12 | 0.4 | 8 | 0.18 | 2900 |
| 20CQ-12 | 20 | 12 | 0.8 | 12 | 0.37 | 2900 |
| 25CQ-15 | 25 | 20 | 1.6 | 15 | 1.1 | 2900 |
| 32CQ-15 | 32 | 25 | 3.2 | 15 | 1.1 | 2900 |
| 32CQ-25 | 32 | 25 | 3.2 | 25 | 1.5 | 2900 |
| 40CQ-20 | 40 | 32 | 6.3 | 20 | 2.2 | 2900 |
| 40CQ-40 | 40 | 32 | 6.3 | 40 | 4 | 2900 |
| 50CQ-25 | 50 | 40 | 12.5 | 25 | 4 | 2900 |
| 50CQ-40 | 50 | 40 | 12.5 | 40 | 4 | 2900 |
| 50CQ-50 | 50 | 32 | 12.5 | 50 | 5.5 | 2900 |
| 65CQ-25 | 65 | 50 | 25 | 25 | 5.5 | 2900 |
| 65CQ-35 | 65 | 50 | 25 | 35 | 7.5 | 2900 |
| 80CQ-35 | 80 | 65 | 50 | 35 | 11 | 2900 |
| 80CQ-50 | 80 | 65 | 50 | 50 | 15 | 2900 |
| 100CQ-32 | 100 | 80 | 100 | 32 | 15 | 2900 |
| 100CQ-50 | 100 | 65 | 100 | 50 | 18.5 | 2900 |
