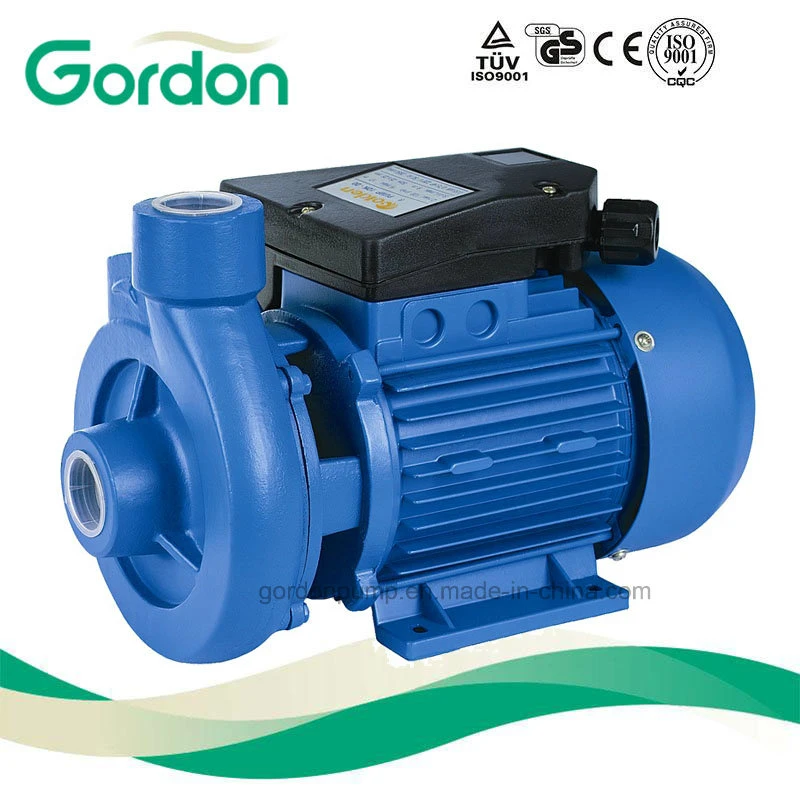

DK Series Brass Impeller Self Priming Centrifugal Household Pressure Pump
Pump
>> Pump Body: cast iron & support under special anti-rust treatment
>> Impeller: stainless steel impeller, brass impeller, ppo impeller
>> Mechnical Seal: carbon / ceramic / Stainless Steel
Motor
>> Bulit-in thermal protector for single phase motor
>> Motor with copper winding
>> Motor Housing: Steel-plate, Aluminum alloy
>> C&U bearing
>> AISI 304 shaft or 45# carbon steel
Working Range
>> Liquid: clean liquids without suspended solids, non-aggressive
>> Liquid temperature: -10ºC and +100ºC
>> Ambient temperature up to +40ºC
>> Max. working pressure 10 bar
>> Continous service S1
>> Insulation: B
>> Protection: IP44
Application
>> Household Water Supply
>> Water Supply System
>> Cooling System
>> Boost System
DK SERIES INTELLIGENT WATER PUMPS FOR COLD AND HOT WATER
1. Self-priming: For the first time using, the entire pump chamber should be filled with water.
2. Automatic: It is powered on or off by automatic system: turn on the tap the pump works, and turn off the tap the pump stop working.
3. Booster: Stable and powerful pressure is controlled by pressure sensor and flow sensor.
Besides, thermal protector in motor will interrupt current when motor overheats.
Production Work-flow Chart of Pump
About us
Fujian Gordon Pump Industry Co., Ltd is located in Fu'an City, where is the capital of small appliances. Gordon is our own brand, which tends to go up in the peer. Our company has a strong technical management team. We Actively promote the automatic process. Our goal is to do a first-class pump manufacturing enterprises.
FAQ
Pump
>> Pump Body: cast iron & support under special anti-rust treatment
>> Impeller: stainless steel impeller, brass impeller, ppo impeller
>> Mechnical Seal: carbon / ceramic / Stainless Steel
Motor
>> Bulit-in thermal protector for single phase motor
>> Motor with copper winding
>> Motor Housing: Steel-plate, Aluminum alloy
>> C&U bearing
>> AISI 304 shaft or 45# carbon steel
Working Range
>> Liquid: clean liquids without suspended solids, non-aggressive
>> Liquid temperature: -10ºC and +100ºC
>> Ambient temperature up to +40ºC
>> Max. working pressure 10 bar
>> Continous service S1
>> Insulation: B
>> Protection: IP44
Application
>> Household Water Supply
>> Water Supply System
>> Cooling System
>> Boost System
DK SERIES INTELLIGENT WATER PUMPS FOR COLD AND HOT WATER
1. Self-priming: For the first time using, the entire pump chamber should be filled with water.
2. Automatic: It is powered on or off by automatic system: turn on the tap the pump works, and turn off the tap the pump stop working.
3. Booster: Stable and powerful pressure is controlled by pressure sensor and flow sensor.
Besides, thermal protector in motor will interrupt current when motor overheats.
Technical Data
Model | HP | W | Current (A) | Capacitor (uf) | H.Max (M) | Q.Max (L/min) | Pipe Size |
1DK-14 | 0.5 | 370 | 1.8 | 10 | 13 | 90 | 1"X1" |
1.5DK-18 | 0.75 | 550 | 3.5 | 15 | 16 | 160 | 1.5"X1.5" |
1.5DK-20 | 1 | 750 | 4 | 20 | 20 | 200 | 1.5"X1.5" |
DK20 | 1.5 | 1100 | 6.8 | 25 | 15 | 380 | 2"X2" |
DK30 | 2 | 1500 | 8.6 | 30 | 20 | 420 | 2"X2" |
Production Work-flow Chart of Pump
About us
Fujian Gordon Pump Industry Co., Ltd is located in Fu'an City, where is the capital of small appliances. Gordon is our own brand, which tends to go up in the peer. Our company has a strong technical management team. We Actively promote the automatic process. Our goal is to do a first-class pump manufacturing enterprises.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
