Our General diesel water pump sets:
Usage: Farm irrigation,fire fighting,industrial watering,mining etc.
Treated Water: Fresh water,River water
Outflow range:15-8000m³/h
Head Lift range:5-10000m
Specific Case characterization :
Diesel engine parameters:
2)Rated output(KW):30KW
3)Rated speed(r/min):1500
4)Starting method: Electric motor 12V DC
5)Cooling method: Water cooling
6)Governing method: Mechanical
7)Intake method: Natural intake
10)Type: in line,4 stroke, humid liner, direct injection
Water pump parameters:
2)Type: Single stage, single suction, centrifugal
5)Shaft power:21KW
6)Inlet diameter:125mm
7)Outlet diameter:150mm
8)Impeller diameter: 400mm
9)Casing material: cast iron
10)Shaft material: cast iron
11)Impeller material:cast iron
12)Sealing method: Stuffing sealing/Mechanical sealing(Optional)

Standard equipment
Diesel engine assembly,water pump assembly,flexible coupling connector,fuel tank,battery,necessary spare parts.user's maual.
Control system(OPTIONAL excluded in price quotated):
1)AMF/ATS function
2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc
3)Display functions with warning ,Auto start and stop
4)Weather canopy,trailer type,silent case,
5)Pipe fittings,valves,
6)Suction pipe,water delivery hose.

Quality Gurantee:1year/1000working hours(the first reach is valid )

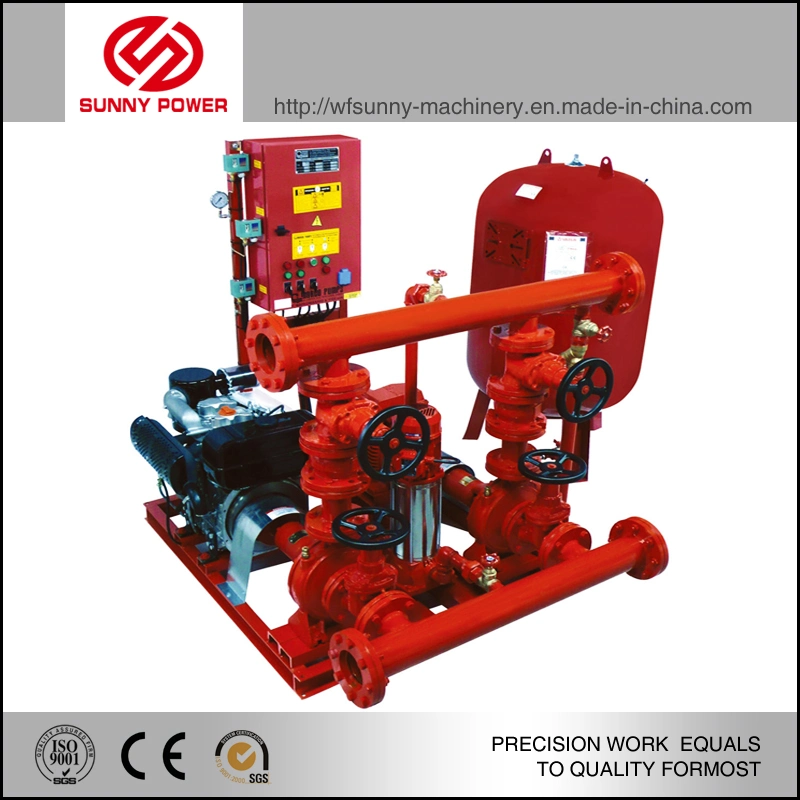

Portable Diesel Engine Fire Water PumpPortable Diesel Engine Fire Water Pump

Portable Diesel Engine Fire Water Pump
Portable Diesel Engine Fire Water Pump
Portable Diesel Engine Fire Water Pump
Portable Diesel Engine Fire Water Pump
