1. Vertical Shield Pump
2. Easy Installation
3. Material: SUS 304/Cast iron
4. High efficient, Compact Design
5.100% no Leakage

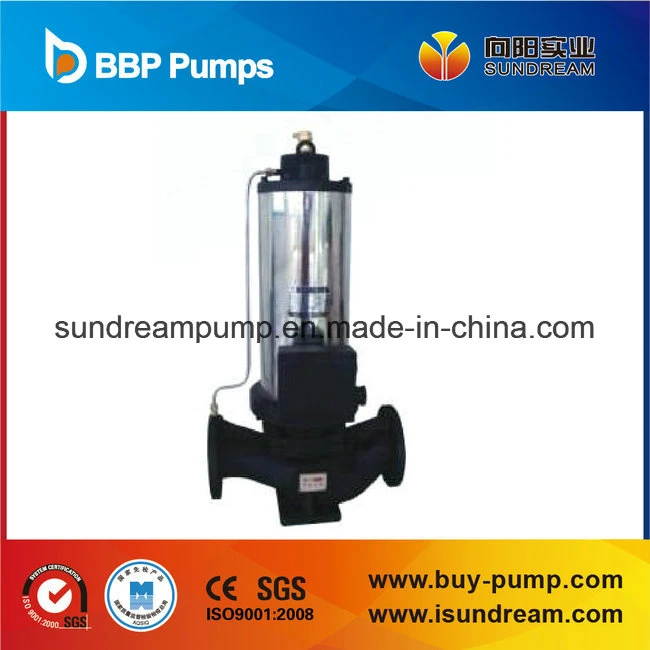

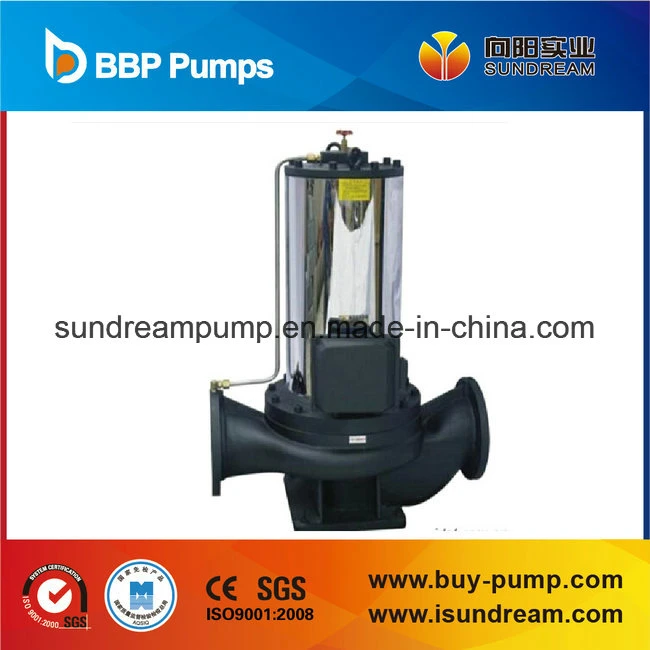

No Leakage PBG Vertical Shield Pump
Specifications:
1. Flow rate up to 1080 m3/h
2. Delivery head up to 125 m
3. Power up to 160.0 kw 2900r/min
Volt=380V/50Hz
Special power supply if request.
4. Suitable Medium: Water, Corrosive Liquid, Chemical Solutions
5. Operation Temperature: -20° C-10° C
6. Suitable TEMP: ≤ 80° C
7. Especailly suitable for low viberation and noise level
8. Mechanical Seal
Materials:
Flow-Through: Cast Iron/Stainless Steel
Body: Cast Iron
Note:
1)OEM service offered
2)Buyer label offered
3)Customer design welcomed
4)20 years of Experience
Technical Parameters
2. Easy Installation
3. Material: SUS 304/Cast iron
4. High efficient, Compact Design
5.100% no Leakage
No Leakage PBG Vertical Shield Pump
Specifications:
1. Flow rate up to 1080 m3/h
2. Delivery head up to 125 m
3. Power up to 160.0 kw 2900r/min
Volt=380V/50Hz
Special power supply if request.
4. Suitable Medium: Water, Corrosive Liquid, Chemical Solutions
5. Operation Temperature: -20° C-10° C
6. Suitable TEMP: ≤ 80° C
7. Especailly suitable for low viberation and noise level
8. Mechanical Seal
Materials:
Flow-Through: Cast Iron/Stainless Steel
Body: Cast Iron
Note:
1)OEM service offered
2)Buyer label offered
3)Customer design welcomed
4)20 years of Experience
Technical Parameters
| Pump Name | SPG/ PBG Shield Chemical Centrifugal Pump |
| Capacity | 3-460 m3/h |
| Head | 5 ~125m |
| Temperature | -30 ~+90 degree |
| Material | Cast iron, 304\304L\316\316L |
| Application | petroleum, chemical, metallurgical, power, papermaking, pharmaceutical and city drain, water pressurized high-rise buildings, garden sprinkler, fire booster, long-distance transmission etc |
| Certificate | CE, ISO9001 |
